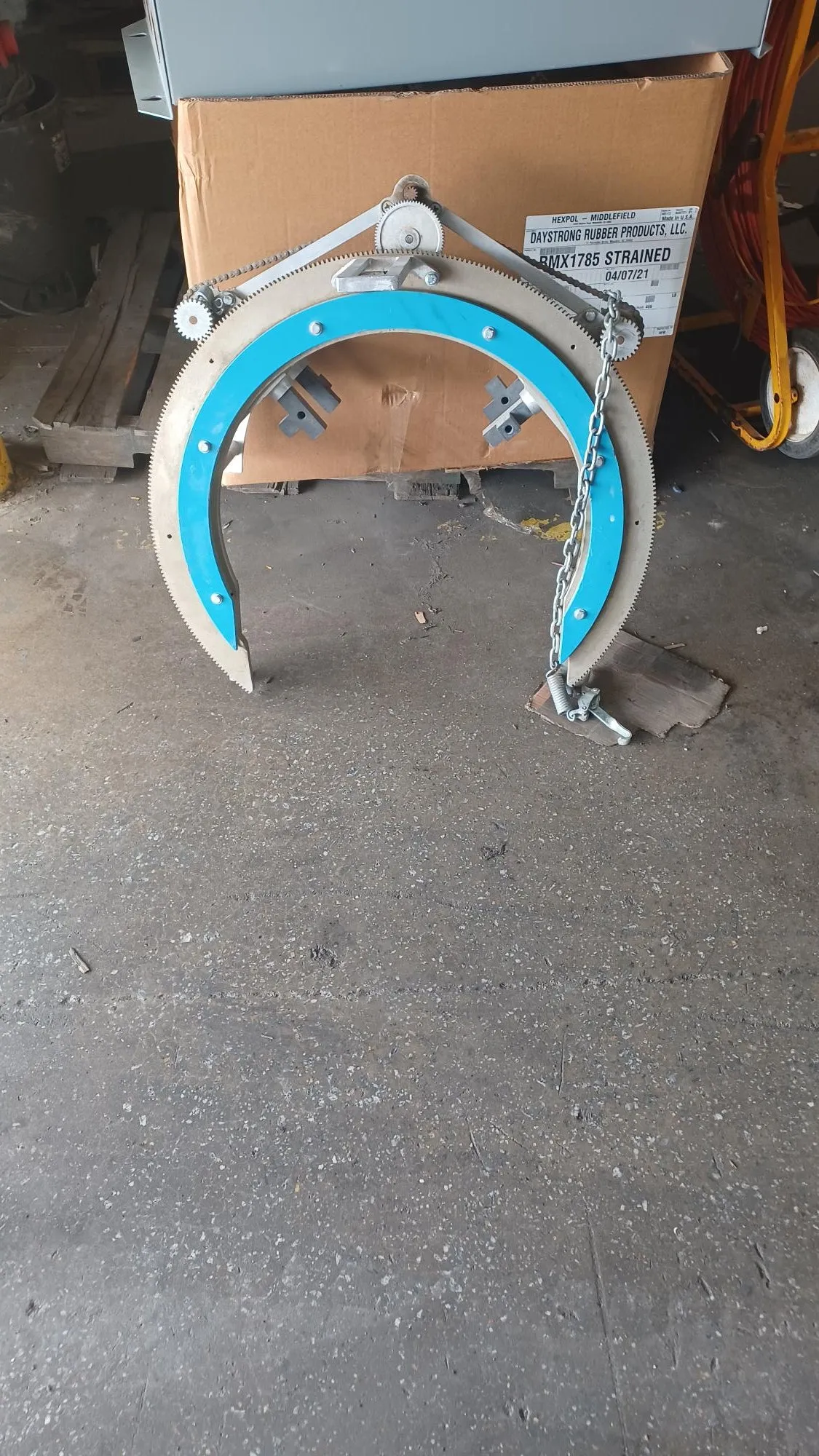

H&M No3 Standard “Saddle-Type” Beveling Machine - Reconditioned w/1 Year Operational Warranty

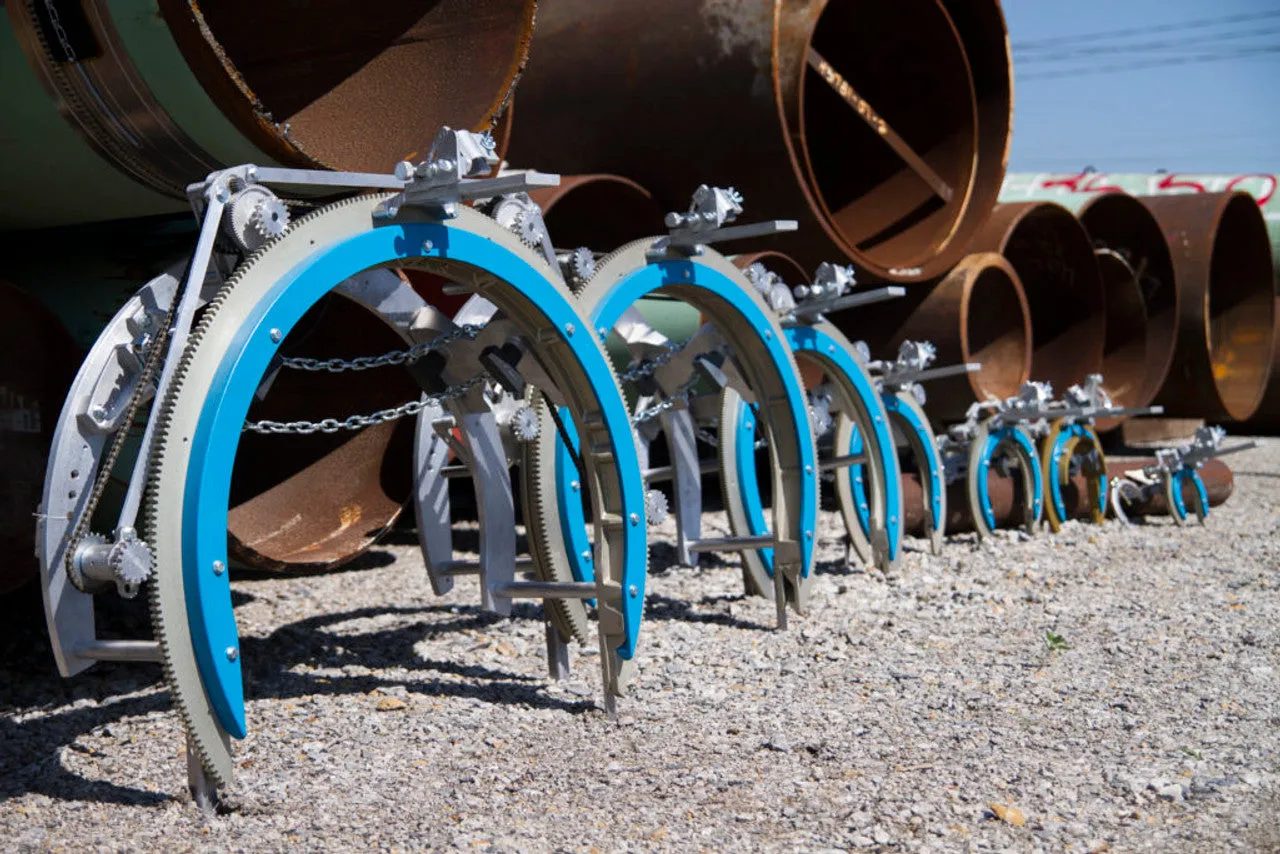

Each H & M machine is constructed of durable, lightweight, hard-anodized aluminum for easy transportation to any job site for cutting and beveling 2″ to 36″ pipe precisely, quickly and economically, even under the toughest conditions.

Model No. Standard Pipe Sizes Net Weight Manual Motorized Cuboid Spacers
(Pat.)

No. 0

2″, 2.5″, 3″ and 4″

9.50 lbs. (4.31 kgs.)

Std.

Optional

Std.

No. 1

3″, 4″, 6″ and 8″

18 lbs. (8.17 kgs.)

Std.

Optional

Std.

No. 2

6″, 7″, 8″, 10″ and 12″

27 lbs. (12.25 kgs.)

Std.

Optional

Std.

No. 3

12″, 14″, 16″, 18″ and 20″

55 lbs. (24.95 kgs.)

Std.

Optional

Std.

No. 4

20″, 22″, 24″ and 26″

81 lbs. (36.74 kgs.)

Std.

Optional

Std.

No. 30

24″, 26″, 28″ and 30″

92 lbs. (41.73 kgs.)

Std.

Optional

Std.

No. 5

30″, 32″, 34″ and 36″

145 lbs. (65.77 kgs.)

Std.

Optional

Std.
