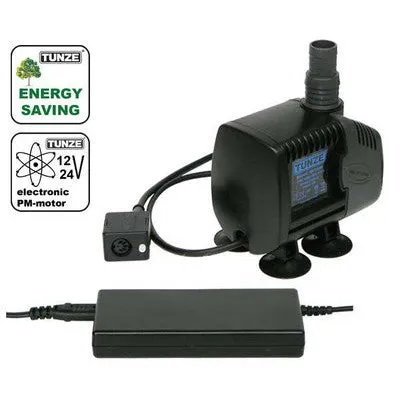

Tunze Recirculation Pump Silence electronic 1073.050
Specifications:
- Flow rate at 18 V: 900 to 2,200 l/h (240 to 580 US gal./h)
- Flow rate at 24 V: 1,100 to 3,000 l/h (290 to 790 US gal./h)
- Hmax. at 18 V: 2.5 m (98.4 in.)
- Hmax. at 24 V: 3.9 m (153.5 in.)
- NPT hose barbs
- Energy consumption at 18 V: max. 26 W
- Energy consumption at 24 V: max. 43 W
- Voltage / frequency: 100 240 V / 50 60 Hz
- Cable length: 5 m (196.8 in.)
- Dimensions without outlet and suction cups: 118 x 94 x 75 mm
Power supply unit
The Silence electronic pump has been fitted with a power supply unit (article No. 6105.240)(1)) with several adjustment possibilities set by the voltage jumper (2).
- Adjustment 24 V direct current (delivery state): Pump adjustable from 900 l/h to 3,000 l/h (237.7 to 792.5 USgal./h); Energy consumption: max. 43 W.
- Adjustment 18V direct current: Pump adjustable from 900 l/h to 2,200 l/h (237.7 to 581 USgal./h); Energy consumption: max. 26 W.
The adjustment of 18V or 24 V is very simple by setting the jumper at the bottom of the power supply unit (2)
